領域：市政飲用水、市政污水/工業廢水、地表水、食品與飲料、半導體
應用：氟化物濃度監測，加氟控制，清潔儲存
特點：
l 測量下限低至10 ppb
l 寬量程：10 ppb - 200 ppm
l 排除樣品中濁度和懸浮固體的干擾，準確測量
l 優秀的奧立龍 Orion 氟離子電極技術
l DKA兩點已知添加校準方法
l 無泵試劑添加技術
配置：
|
訂貨號
|
名稱
|
|

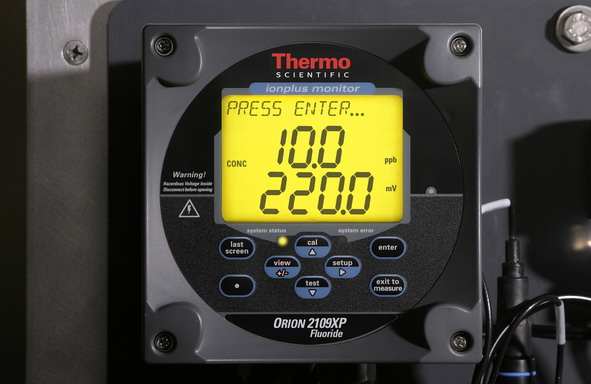

2109XP
|
2109XP氟表(不含主表外保護箱)
|
|
2109XPEN
|
2109XP氟表(含主表外保護箱)
|
試劑包
|
訂貨號
|
試劑包
|
描述
|
|
210960XP
|
Fluoride Consumables Kit
|
For one year operation, includes (6) x 1 L bottles formic acid reagent and (6) x 2 ft long diffusion tubing with O-rings (182011), fluoride standard solution kit (180940), fluoride sensing electrode (100029), fluoride reference electrode (100056), (1) x 2 oz bottle reference electrode filling solution (181073), O-ring kit (2100OK), check valve (2100VC), pipette tips (204846-001), restriction tube assembly (2100RT) and inlet filter with gaskets (181170)
|
|
210960XPF*
|
Reagent-less Fluoride Consumables Kit
|
For one year operation, includes (6) x 1 L empty bottles for use with formic acid reagent (182011), (6) x 2 ft long diffusion tubing with O-rings (181060), fluoride standard solution kit (180940), fluoride sensing electrode (100029), fluoride reference electrode (100056), (1) x 2 oz bottles reference electrode filling solution (181073), O-ring kit (2100OK), check valve (2100VC), pipette tips (204846-001), restriction tube assembly (2100RT) and inlet filter with gaskets (181170)
|
|
182011F*
|
Reagent-less Formic Acid Reagent Bottle
|
Includes (1) x 1 L empty bottle for use with formic acid reagent (182011) and (1) x 2 ft long diffusion tubing with O-rings (181060)
|
|
182011F6*
|
Reagent-less Formic Acid Reagent Bottle
|
Includes (6) x 1 L empty bottles for use with formic acid reagent (182011) and (6) x 2 ft long diffusion tubing with O-rings (181060)
|
|
181060
|
Fluoride Diffusion Tubing
|
(1) x 2 ft long diffusion tubing and O-rings
|
|
181160
|
High Acid Diffusion Tubing
|
(3) x 5’8” long thin-walled diffusion tubing and O-rings for high alkalinity samples, 6 month supply
|
電極及配件
|
訂貨號
|
試劑包
|
描述
|
|
2109XPEK
|
Fluoride Electrode Kit
|
Includes fluoride sensing electrode (100029), fluoride reference electrode (100056), and reference electrode filling solution (181073)
|
|
100029
|
Fluoride Sensing Electrode
|
For use with 2109XP
|
|
100056
|
Fluoride Reference Electrode
|
For use with 2109XP, includes reference electrode filling solution (181073)
|
|
181073
|
Reference electrode filling solution
|
(5) x 2 oz bottles for use with reference electrode (100056)
|
|
2100TP
|
2100 Series Automatic Temperature Probe
|
With ground (30 k?), for use with 2109XP
|
|
2001XT
|
2100 Series Automatic Temperature Probe
|
With 10 meter extension cable and ground (30 k?), for use with 2109XP
|
|
2109XPCAL
|
Calibration Kit
|
Includes carrying case, 0.5 mL pipette (204847-001), box of pipette tips (204846-001), wash bottle, (1) x 2 oz bottle fluoride standard 1 (100 ppm), (1) x 2 oz bottle fluoride standard 2 (1000 ppm) and (1) inlet filter
|
|
180940
|
Fluoride Standard Solution Kit
|
Includes (2) x 2 oz bottles of fluoride standard 1 (100 ppm) and (2) x 2 oz bottles of fluoride standard 2 (1000 ppm)
|
|
940907
|
Standard Solution
|
(1) x 1 pint bottle 100 ppm fluoride standard solution
|
|
110902
|
Standard Solution
|
(1) x 1 pint bottle 1000 ppm fluoride standard solution
|
|
21003M
|
Extension Cables
|
(2) x 3 meter cables, for 100029 and 100056 electrodes
|
領域：市政飲用水、市政污水/工業廢水、地表水、食品與飲料、半導體
應用：氟化物濃度監測，加氟控制，清潔儲存
特點：
l 測量下限低至10 ppb
l 寬量程：10 ppb - 200 ppm
l 排除樣品中濁度和懸浮固體的干擾，準確測量
l 優秀的奧立龍 Orion 氟離子電極技術
l DKA兩點已知添加校準方法
l 無泵試劑添加技術
配置：
|
訂貨號
|
名稱
|
|
2109XP
|
2109XP氟表(不含主表外保護箱)
|
|
2109XPEN
|
2109XP氟表(含主表外保護箱)
|
試劑包
|
訂貨號
|
試劑包
|
描述
|
|
210960XP
|
Fluoride Consumables Kit
|
For one year operation, includes (6) x 1 L bottles formic acid reagent and (6) x 2 ft long diffusion tubing with O-rings (182011), fluoride standard solution kit (180940), fluoride sensing electrode (100029), fluoride reference electrode (100056), (1) x 2 oz bottle reference electrode filling solution (181073), O-ring kit (2100OK), check valve (2100VC), pipette tips (204846-001), restriction tube assembly (2100RT) and inlet filter with gaskets (181170)
|
|
210960XPF*
|
Reagent-less Fluoride Consumables Kit
|
For one year operation, includes (6) x 1 L empty bottles for use with formic acid reagent (182011), (6) x 2 ft long diffusion tubing with O-rings (181060), fluoride standard solution kit (180940), fluoride sensing electrode (100029), fluoride reference electrode (100056), (1) x 2 oz bottles reference electrode filling solution (181073), O-ring kit (2100OK), check valve (2100VC), pipette tips (204846-001), restriction tube assembly (2100RT) and inlet filter with gaskets (181170)
|
|
182011F*
|
Reagent-less Formic Acid Reagent Bottle
|
Includes (1) x 1 L empty bottle for use with formic acid reagent (182011) and (1) x 2 ft long diffusion tubing with O-rings (181060)
|
|
182011F6*
|
Reagent-less Formic Acid Reagent Bottle
|
Includes (6) x 1 L empty bottles for use with formic acid reagent (182011) and (6) x 2 ft long diffusion tubing with O-rings (181060)
|
|
181060
|
Fluoride Diffusion Tubing
|
(1) x 2 ft long diffusion tubing and O-rings
|
|
181160
|
High Acid Diffusion Tubing
|
(3) x 5’8” long thin-walled diffusion tubing and O-rings for high alkalinity samples, 6 month supply
|
電極及配件
|
訂貨號
|
試劑包
|
描述
|
|
2109XPEK
|
Fluoride Electrode Kit
|
Includes fluoride sensing electrode (100029), fluoride reference electrode (100056), and reference electrode filling solution (181073)
|
|
100029
|
Fluoride Sensing Electrode
|
For use with 2109XP
|
|
100056
|
Fluoride Reference Electrode
|
For use with 2109XP, includes reference electrode filling solution (181073)
|
|
181073
|
Reference electrode filling solution
|
(5) x 2 oz bottles for use with reference electrode (100056)
|
|
2100TP
|
2100 Series Automatic Temperature Probe
|
With ground (30 kΩ), for use with 2109XP
|
|
2001XT
|
2100 Series Automatic Temperature Probe
|
With 10 meter extension cable and ground (30 kΩ), for use with 2109XP
|
|
2109XPCAL
|
Calibration Kit
|
Includes carrying case, 0.5 mL pipette (204847-001), box of pipette tips (204846-001), wash bottle, (1) x 2 oz bottle fluoride standard 1 (100 ppm), (1) x 2 oz bottle fluoride standard 2 (1000 ppm) and (1) inlet filter
|
|
180940
|
Fluoride Standard Solution Kit
|
Includes (2) x 2 oz bottles of fluoride standard 1 (100 ppm) and (2) x 2 oz bottles of fluoride standard 2 (1000 ppm)
|
|
940907
|
Standard Solution
|
(1) x 1 pint bottle 100 ppm fluoride standard solution
|
|
110902
|
Standard Solution
|
(1) x 1 pint bottle 1000 ppm fluoride standard solution
|
|
21003M
|
Extension Cables
|
(2) x 3 meter cables, for 100029 and 100056 electrodes
|
|
量程
|
10 ppb – 200 ppm
|
|
準確度
|
± 10% 或 10 ppb
|
|
響應時間
|
2分鐘內達到最終讀數的50%
|
|
信號輸出
|
2路隔離的0/4 - 20 mA模擬輸出（線性或?qū)?shù)）
|
|
水樣要求
|
5 to 45 ?C；250 ppm CaCO3；40 mL/min
|
|
校準
|
DKA兩點已知添加校準方法
|
|
電源
|
85-132或 170-264 V AC
|
|
包裝尺寸
|
65 x 45 x 27 cm (26” x 17” x 11” )
|
|
重量
|
22.7 kg
|
